Advanced Safety Tester (ADST Series)
Lithium-ion secondary batteries are adopted wider applications in everything from consumer use to storage and automobiles, and there is greater interest not only in advancing performance testing but also in safety testing. ESPEC designed the Advanced Safety Tester to perform multiple safety tests under precise temperature environments.
Tests such as nail penetration, crushing, short circuit and overcharge/discharge testing is possible in a temperature (&humidity) controlled space. Constructed with an integrated system using a measurement control unit this system provides centralised management of testing operations and minimizes complex operations for performing tests.
One unit with four functions:
The function elements of the safety tester are in separate modules, enabling flexible system construction and expansion.
The combination of each unit enables support of batteries from small cells to large packs.
Constructed with an integrated system using a measurement control unit. This system provides central management of testing operations and minimizes complex operations for performing tests.
One-stop service provides enhanced product and service quality as well as speed.
Model Summary
| Category | Item | Specifications (example) |
|---|---|---|
| Applicable battery | Small capacity cells to laptop battery packs | |
| Test chamber | Temperature range | -40 to 100°C |
| Temperature fluctuation | ±0.3°C | |
| Safety devices |
| |
| Measurement control unit | System | Test chamber, nail penetration, crushing, external short circuit integrated system |
| Monitored items | (Nail penetration, crushing) load, transfer distance, velocity, battery voltage, battery temperature (External short circuit) battery voltage, battery temperature | |
| Data output | Monitored items can be saved to a CSV file | |
| Crushing/nail penetration unit | Size of mountable battery | W245 × D215 × H180 mm |
| Load range | 0.4 to 20kN | |
| Velocity | 0.1 to 50mm/sec. | |
| Stroke | 2 to 200mm | |
| External short circuit unit | Short circuit current | 500A |
| Circuit resistance | Resistance switching inside unit (1) 5 mΩ or less (resistance short) (2) 10 to 30 mΩ (3) 80 to 100 mΩ | |
Large external short circuit tester
The world's first large tester that supports a maximum voltage of 500V and a maximum current of 24,000A.

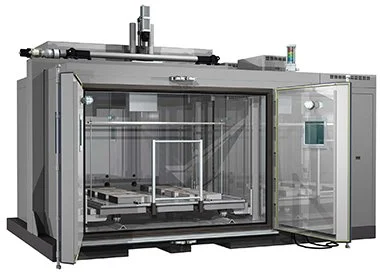

Large nail penetration and crushing tester
This system is equipped with various safety functions and an electronic elevator stage that can support up to 500 kg and a 2m × 2m size.
