Qualmark OVTT Vibration Tables
The OVTT (Qualmark Benchtop Repetitive-Shock Table) is the first stand-alone, table-top, repetitive-shock vibration system on the market. The OVTT system is ideal for No Fault Found (NFF) precipitation screens of field returns, repair verification, and random vibration test of small products. The Qualmark OVTT system utilizes our patented six-degree-of-freedom vibration technology and has reduced air requirements and low noise levels. The table-top configuration is easy to add to any laboratory and can be placed inside a thermal chamber for combined stress testing.
Can be placed in a thermal chamber for combined environment testing (remove cover & detach console)
PLC Electronic Console with PanelView Controller
OVTT Manager Software
One accelerometer for table control and 20 ft. cable
Clear lid
6DOF repetitive-shock table
Simultaneous excitation at multiple frequencies for testing complex assemblies
Patented pneumatic hammer/table design is lubrication-free and valveless
Quiet operation without external cooling requirements
The table is field-adjustable for resetting to original PSD levels, ensuring consistent performance. (Adjustment included in our preventative maintenance agreement.)

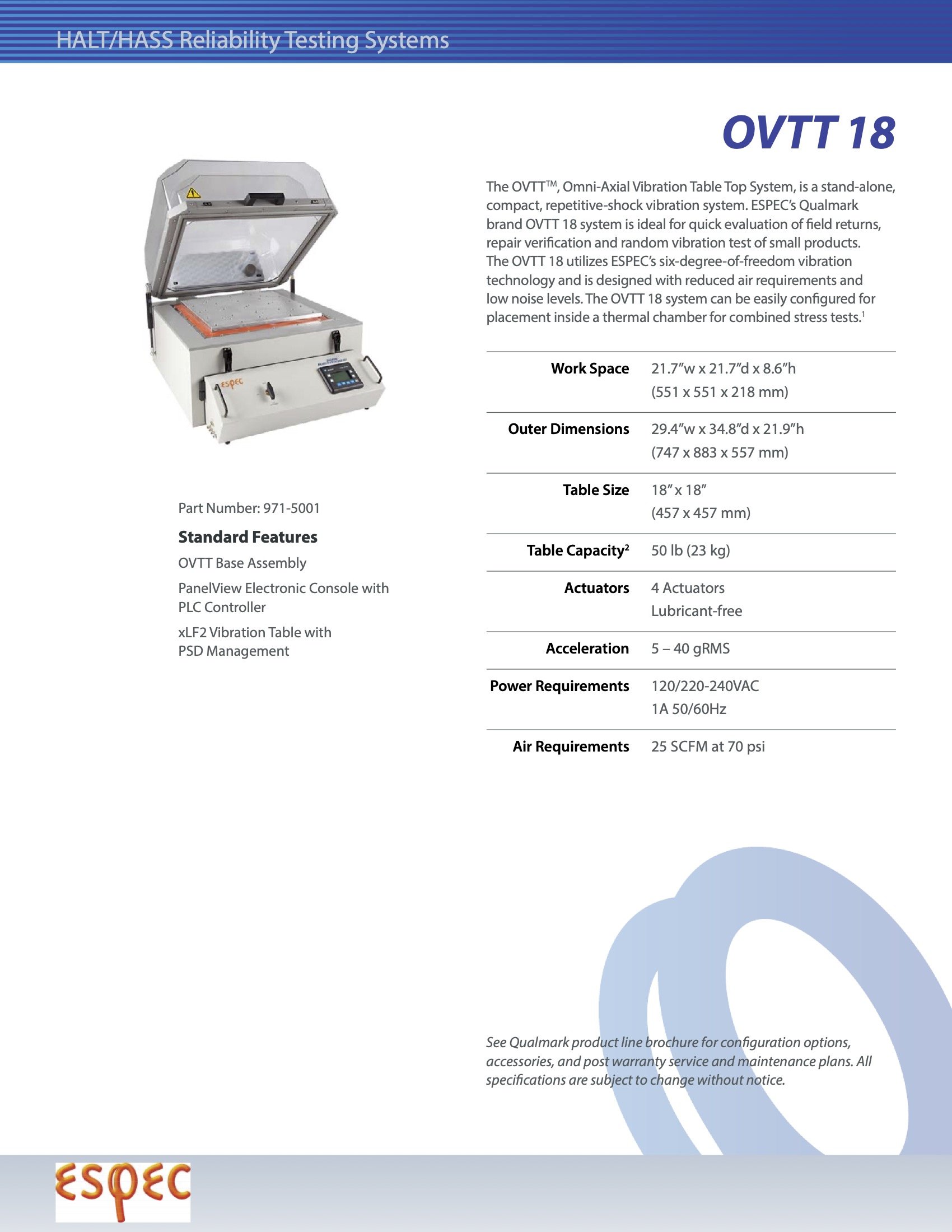

HALT Chamber Specifications (Qualmark OVTT)
| Model Number | Vibration Table | Interior Volume | Repetitive Shock |
|---|---|---|---|
| OVTT 18 | Table size: 18" x 18" (457 x 457mm); 4 actuators | 2.3 cu. ft. | Vibration Acceleration: 5 - 40 gRMS (bare table) |
| OVTT 24< | Table size: 24" x 24" (610 x 610mm); 5 actuators | 4.7 cu. ft. | Vibration Acceleration: 5 - 60 gRMS (bare table) |
