Environmental Stress Chambers (AR Series)
For faster change rates and demanding heat loads the AR series comes in 32 configurations. The line up is split into rapid-rate chambers (5, 10, 15K/minute) and standard rate (~4K/minute) chambers.
These models are made to accelerate test time and meet German OEM test specifications including LV-124 and LV-148, along with a variety of IEC and ISO automotive standards. Tests like humidity-freeze, and rapid-rate cycling are the drivers for the development of these models.
Built-in remote monitoring and control is provided so there’s no external computer or software required. An innovative web browser application allows to monitor and control the chamber with a computer via the chamber standard Ethernet/LAN port. Mobile PC, tablet, and smart phone with multiple chamber connections possible by wireless connection.
Totally frost free operation for long term cycling use - frosting will not appear on any part of the unit despite the temperature & humidity control range of range from 10 to 98%rh. Eradicating the need to remove frosting provides stable and continuous operations.
Depending on the configuration the chamber can handle up to massive 9500W of heat load from the test samples.
Product Video :: Rapid Rate Chambers
Product Gallery :: Rapid Rate Chambers
Wide Range of Models
AR Series - Model Overview
All model comparison.
Standard Type AR (4K/min) Datasheet
AR Environmental Stress Test Chamber - air cooled, high rate cycling.
5K/min, 10K/min, 15K/min Datasheet
AR Environmental Stress Test Chamber - water cooled, high rate cycling.

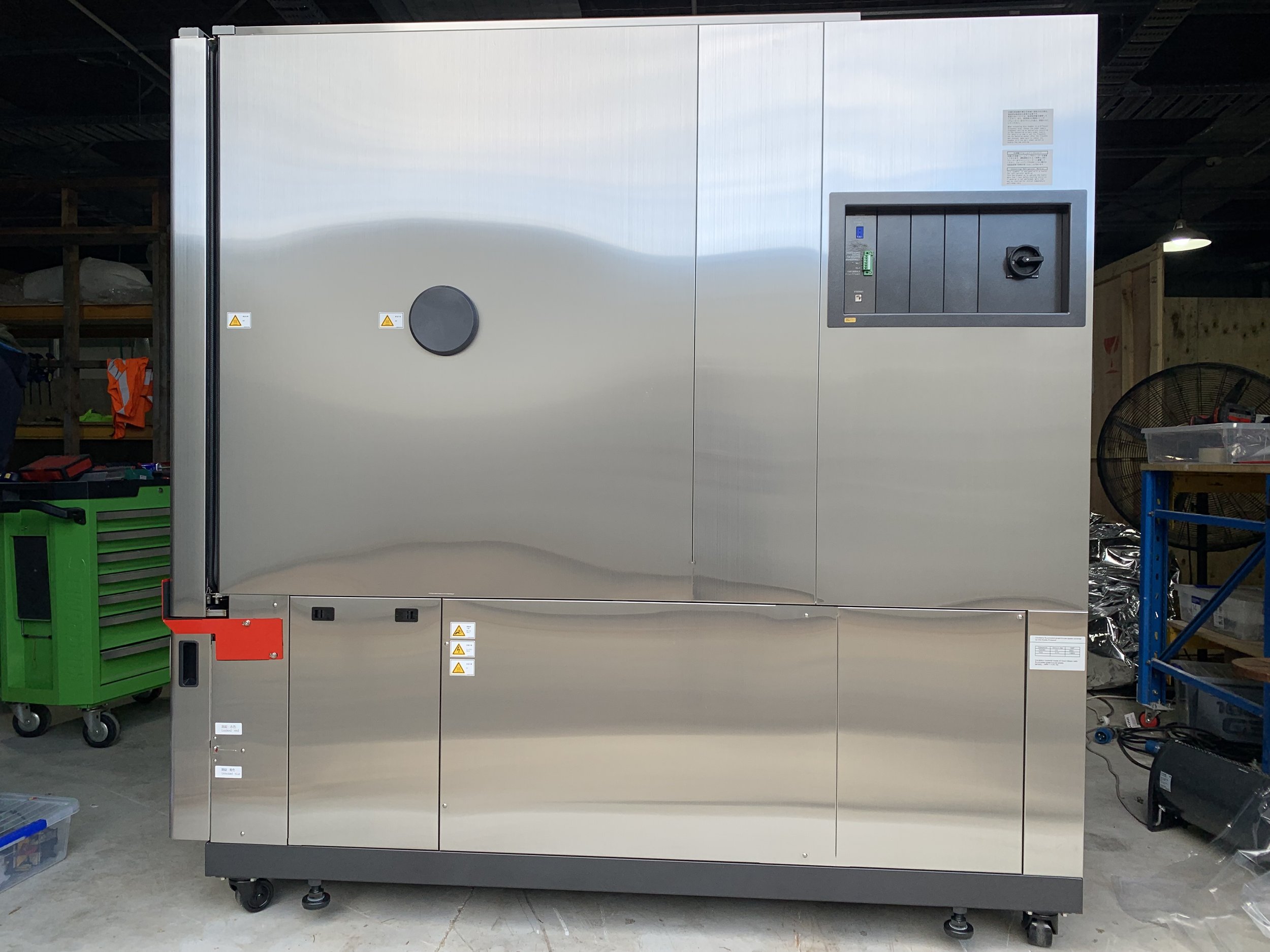

Large AR Series
Need it bigger? We can do it, this is a stretched form for larger items like EV Drivetrains.
Model Summary :: Rapid Rate (5, 10, 15K/minute) (Water Cooled)
| Temp.&humidity range | Temp. rate of change －45⇔＋155℃ | Capacity | Model | |
|---|---|---|---|---|
| Temperature & Humidity Control | －70 to ＋180℃ 10 to 98％rh | 6K/min | 680L | ARS-0680-5 |
| 1100L | ARS-1100-5 | |||
| 10K/min | 249L | ARSF-0250-10 | ||
| 398L | ARSF-0400-10 | |||
| 784L | ARSF-0800-10 | |||
| 1100L | ARS-1100-10 | |||
| 15K/min | 398L | ARSF-0400-15 | ||
| 680L | ARS-0680-15 | |||
| 784L | ARSF-0800-15 | |||
| 18K/min | 249L | ARSF-0250-15 | ||
| Temperature Control | －70 to ＋180K | 6K/min | 680L | ARG-0680-5 |
| 1100L | ARG-1100-5 | |||
| 10K/min | 249L | ARGF-0250-10 | ||
| 398L | ARGF-0400-10 | |||
| 784L | ARGF-0800-10 | |||
| 1100L | ARG-1100-10 | |||
| 15K/min | 398L | ARGF-0400-15 | ||
| 680L | ARG-0680-15 | |||
| 784L | ARGF-0800-15 | |||
| 1430L | ARS-1430-15 | |||
| 18K/min | 249L | ARGF-0250-15 |
Full Specification: https://www.espec.co.jp/english/inquiry/catalog/ar01.pdf
Model Summary :: Standard Type (Air Cooled)
| Temp.&humidity range | Temp. rate of change | Capacity | Model | |
|---|---|---|---|---|
| Temperature & Humidity Control | －75 to ＋180℃ 10 to 98％rh | Heat up:6.0K/min Pull down:4.9K/min －49.5⇔＋154.5℃ | 220L | ARS-0220 |
| Heat up:5.0K/min Pull down:4.0K/min －49.5⇔＋154.5℃ | 390L | ARS-0390 | ||
| Heat up:6.0K/min Pull down:4.2K/min －49.5⇔＋154.5℃ | 680L | ARS-0680 | ||
| Heat up:4.7K/min Pull down:4.1K/min －49.5⇔＋154.5℃ | 1100L | ARS-1100 | ||
| －45 to ＋180℃ 10 to 98％rh | Heat up:6.3K/min Pull down:4.8K/min －22.5⇔＋157.5℃ | 680L | ARL-0680 | |
| Heat up:4.7K/min Pull down:4.4K/min －22.5⇔＋157.5℃ | 1100L | ARL-1100 | ||
| Temperature Control | －75 to ＋180℃ | Heat up:6.0K/min Pull down:4.9K/min －49.5⇔＋154.5℃ | 220L | ARG-0220 |
| Heat up:5.0K/min Pull down:4.0K/min －49.5⇔＋154.5℃ | 390L | ARG-0390 | ||
| Heat up:6.0K/min Pull down:4.2K/min －49.5⇔＋154.5℃ | 680L | ARG-0680 | ||
| Heat up:4.7K/min Pull down:4.1K/min 49.5⇔＋154.5℃ | 1100L | ARG-1100 | ||
| －45 to ＋180℃ | Heat up:6.3K/min Pull down:4.8K/min －22.5⇔＋157.5℃ | 680L | ARU-0680 | |
| Heat up:4.7K/min Pull down:4.4K/min －22.5⇔＋157.5℃ | 1100L | ARU-1100 |
Full Specification: https://www.espec.co.jp/english/inquiry/catalog/ar02.pdf
Test Standards :: Conformance
LV 124: covers tests for electric and electronic components for use in motor vehicles up to 3,5 t with a 12 V electric system
K-01 High / low temperature storage
K-02 Incremental temperature test
K-03 Low temperature operation
K-04 Repainting temperature (+130ºC > +110ºC)
K-08 Damp heat, cyclic
K-09 Damp heat, cyclic (with frost)
K-14 Damp heat, constant
L-01 Life test - mechanical/hydraulic endurance test
L-02 Life test - high-temperature endurance test
L-03 Life test - temperature cycle test
ISO16750 covers testing of commercial vehicles
IEC60068-2-XX Series covers a wide range of climatic test requirements
