Vibrometer :: CardVibro Air2 (Wireless)
Precise measurements are now possible even in challenging environments where access can be difficult. Measurements are taken using a wireless accelerometer sensing system that allows for complete hands-free operation. Using any Android tablet or phone the wireless sensors can be paired and measured remotely.
External accelerometers are additionally supported via an expansion port on the CardVibro Air2 element.
Key Features
Fast Wireless Vibration Measurement

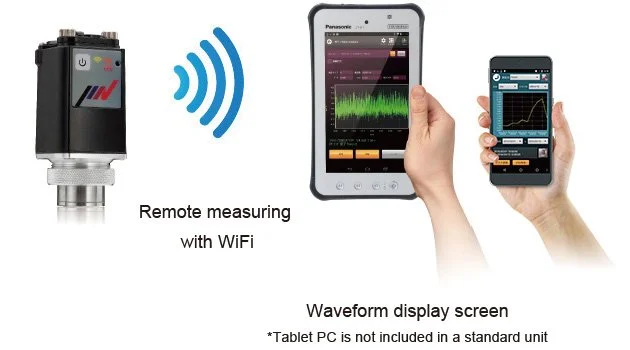

The CardVibro Air2 provides real time vibration monitoring and analysis via WiFi link to an Android Tablet. Capture without lag, and cables.
Compact & Lightweight
Weighing in at 145 grams the remote sensing unit is easy to carry. With a size of 89mm x 42mm the device fits easily into a pocket.

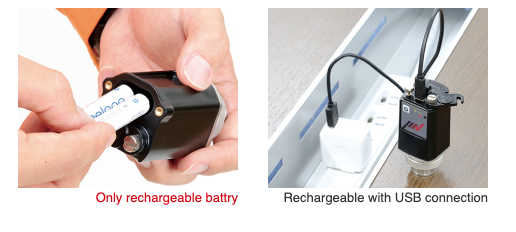

Battery or USB Power
Power the device using AAA batteries or via a USB power bank or wall-wart. The device runs for up to 6 hours on standard rechargeable AAA batteries and longer on lithium-based technology.
CardVibro Specifications
Standard Sensor
| Item | Specification |
|---|---|
| Mass | Approx.145 g |
| Size | 40.5 mm (W) × 41.5 mm (D) × 88.6 mm (H) |
| Sensor | Piezoelectric accelerometer |
| Acceleration range | 10 to 10000 Hz |
| Velocity range | 10 to 1000 Hz |
| Displacement range | 10 to 150 Hz |
| Maximum measurement acceleration | 500 m/s² |
External Pickup Option
| Item | Specification |
|---|---|
| Mass | Approx.130 g (excluding a sensor) |
| Size | 40.5 mm (W) × 41.5 mm (D) × 88 mm (H) |
| Connecting sensor | Voltage output sensor, ICP sensor |
| Voltage output port | -5 V, +5 V |
| ICP port | + 24 V (2 mA) |
| Voltage input port | ± 2.5 V |
| Sensor input IF | HR10 A (round type pin 6) |
