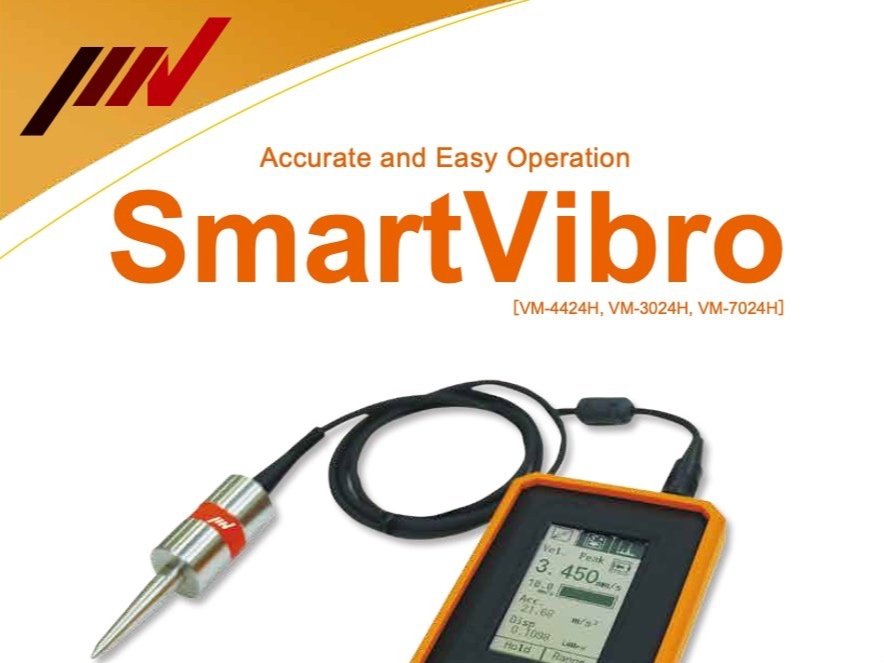

Vibrometer :: SmartVibro (Wired)
The SmartVibro is a portable, cost-effective multi-function vibrometer. Acceleration, velocity and displacement are indicated simultaneously on LCD touch screen. The meter is especially useful for the measurement of turbines, power generators, blowers, pumps and compressors. In addition to routine maintenance use, it can be used in shipping inspection or vibration investigation of electric appliances in-situ.
Measurement modes are easily selected right on the screen - you can select “peak” for peak to peak value of shock waveform, “rms” for condition of rotation machine, or even FFT analysis.
There are many functions to express characteristics of vibration, so conventional vibrometers usually needed to switch modes every time you want to measure a different factor. Now you can measure acceleration, velocity and displacement simultaneously. This saves operating time and prevents mis-measurements. By switching the screen, the VM4424H can confirm bearing condition via the acceleration envelope to find even small defects easily.
Key Functions
Simultaneous Measurement
Now you can measure acceleration, velocity and displacement simultaneously. This saves operating time and prevents mis-measurements. By switching the screen, the VM4424H can confirm bearing condition via the acceleration envelope to find even small defects easily.
Touch Panel LCD
The touch panel provides easy access for setting and selecting measurement values. The SmartVibro has more functions such as adjustment of brightness of contrast of the backlight + zoom and scroll through measured values which makes analysis a breeze.
Model Differentiation
| Sensor principle | Piezoelectric Type | Electro-dynamic Type | Piezo-resistive Type | |
|---|---|---|---|---|
| Model | VM-4424H | VM-3024H | VM-7024H | |
| High-end | High-end | High-end | ||
| Usablility | Simultaneous measurement | ○ | ○ | ○ |
| Waveform data storage | ○ | ○ | ○ | |
| FFT analysis | ○ | ○ | ○ | |
| Object | Motor, Blower, Pump | ○ | ○ | - |
| Turbine | - | ○ | - | |
| Generator | - | ○ | - | |
| Mixer, Centrifuge | - | - | ○ | |
| Crane, Bridge | - | - | ○ | |
| Floor, Ground | - | - | ○ | |
Datasheet
SmartVibro Datasheet (PDF)
Vibrometer with Low-price and high-functionally. Light and compact size.
Simultaneous measurement of acceleration, velocity and displacement.
