Qualmark Typhoon 3.0 HALT Chamber (LN2)
The Qualmark Typhoon 3.0 is specifically designed to help the customer who is performing low volume HASS and needs a chamber with a 36” x 36” vibration table. It is also ideal for performing HALT on mid-sized and larger products. Like our Typhoon 4.0, the Typhoon 3.0 vibration table mounts at two different heights, so the interior chamber volume can be adjusted for the needs of the product.
The Qualmark Typhoon 3.0 includes the xLF2 vibration table and 14-bit controller meaning you’ll be breaking products in record time. This model is particularly well suited to system based tests where a range of products must be tested together, requiring more real-estate than single product tests.
Qualmark HALT testing systems (Highly Accelerated Life Test) combine extreme temperature cycling and repetitive-shock/vibration for the ultimate in accelerated reliability testing. The technology has matured from a simple thermal shock chamber with a vibration table to an integrated testing system. Qualmark chambers have been the market leader in HALT since introducing the technology in the early 1990s. Today, our technology continues to reflect the best advances in HALT/HASS system testing. Our models are the most energy-efficient on the market. The technology provides the extreme stresses necessary to rapidly find design flaws missed by traditional methods.
The table delivers six-degree-of-freedom, random, broadband excitation (10 Hz to above 5,000Hz) with a consistent power spectral density profile that eliminates "picket fencing." The thermal chamber's conditioning system features vacuum-jacketed liquid nitrogen cooling and nichrome wire heating, resulting in ramp rates of 60-100˚C per minute.
We specify, quote, install and service these machines Australia-wide.
6DOF repetitive-shock table
Simultaneous excitation at multiple frequencies for testing complex assemblies
Patented pneumatic hammer/table design is lubrication-free and valveless
Quiet operation without external cooling requirements
The table is field-adjustable for resetting to original PSD levels, ensuring consistent performance. (Adjustment included in our preventative maintenance agreement.)
Cooling System
Vacuum Jacketed (VJ) liquid nitrogen (LN2) valves and manifold.
Proportional control and valve system for maximum LN2 efficiency and consistent temperature control, while reducing two-phase (gas/liquid) states that cause problems in traditional on/off solenoid-based control.
VJ eliminates condensation, dripping water, OSHA safety concerns, and energy loss compared to other insulation methods.
Efficient, economical LN2 usage with either low-pressure Dewar tanks or higher pressure Permacyl and bulk tank systems.
Chamber Design
Stainless steel interior, painted exterior, with two full opening doors (one door on T1.5/2.0 models)
High-velocity airflow for improved product temperature change rates.
Two-position table for flexibility to test taller samples, improved ergonomics, and less LN2/electricity usage for smaller test items. (except T1.5/2.0)
Advanced chamber insulation combined with our low-noise hammers results in very quiet operation, even at maximum vibration levels.
Adjustable feet for leveling unit (stand options for T2.5/3.0 models)
Control System
Microsoft Windows system with Labview based operation and PLC-based controls
Programming, operation, and datalogging for vibration/thermal profiles.
One accelerometer for table control (three additional inputs available)
Two thermocouples: one for product, one for air (four additional inputs available)
Eight event relays for external controls
Optional Q-Link or Qualview software tools for ATE integration and other remote connections.
Optional integrated spectrum analyzers and data acquisition systems.
Liquid Nitrogen Vacuum Jacketed Piping
We work with your facilities teams to specify, design and supply the pipework for your HALT chamber.
Keep-full devices are essential to ensure optimum control of the chamber - preventing gas from creating PID disturbances.
Our pipe is made in the USA by Midwest Cryogenics and is simple to install and maintain.
Exhausts, airlines, and all other chamber utility requirements can be supplied.
External control and safety valves can be fitted to shut off supply in the event of a leak.
Safety Systems
We understand the risks of Liquid Nitrogen and have decades of experience planning installations and the safety mitigations that go with them.

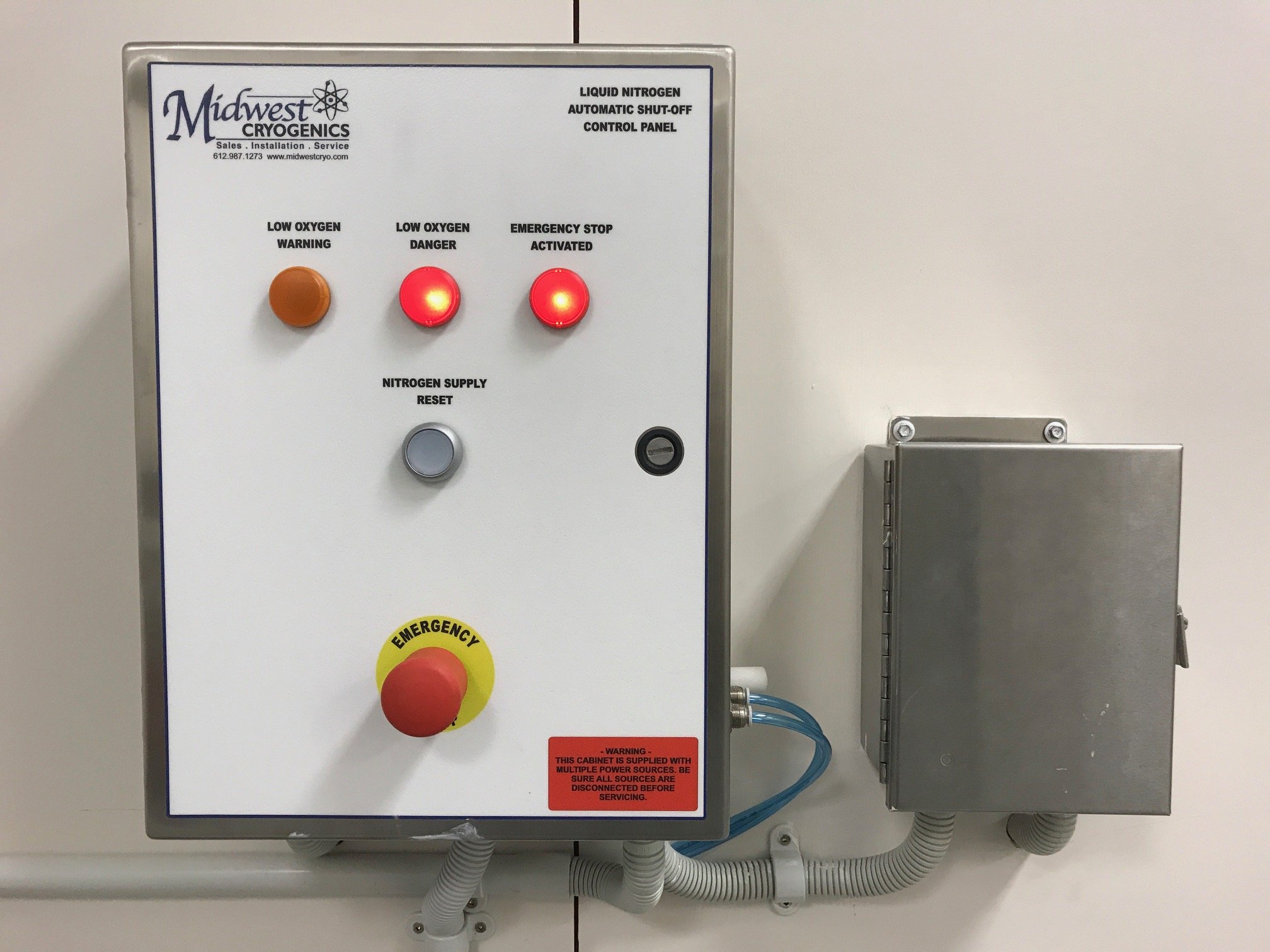

Control panels inside the room are tied to gas detectors which can automatically shut the chamber supply line down at the source.
Control valves can be placed at key points along the route to ensure sections can be isolated through key facilities.
Additionally the control panels can be tied to facility supply and exhaust systems to increase air flow before critical alarms kick in and take the building down.
HALT Chamber Specifications (Qualmark Typhoon 3.0)
| Qualmark HALT | T3.0 |
|---|---|
| Interior Volume | 40.1 cu. ft. 1135 Liters |
| Interior Dimensions (W x D x H) |
44" x 45" x 35" 1117 x 1143 x 889 mm |
| Exterior Dimensions (W x D x H) |
56.1" x 69.6" x 83.6" 1424 x 1767 x 2124 mm |
| Temperature Range | -100 to 200°C -148 to 392°F |
| Average Change Rate (lower with 50Hz power) |
70°C/min
|
| Repetitive Shock | Vibration Acceleration: 5 - 65 gRMS (bare table) |
| Power | 440V/480V 80A max (400V 3ph 50Hz) |
| Maximum Sound Level (1 meter away) |
73 dBA at 40 gRMS dBA |
| Notes | Table size: 36" x 36" (914 x 914mm); 10 actuators |
