High Displacement Vibration Shakers (IMV J-Series)

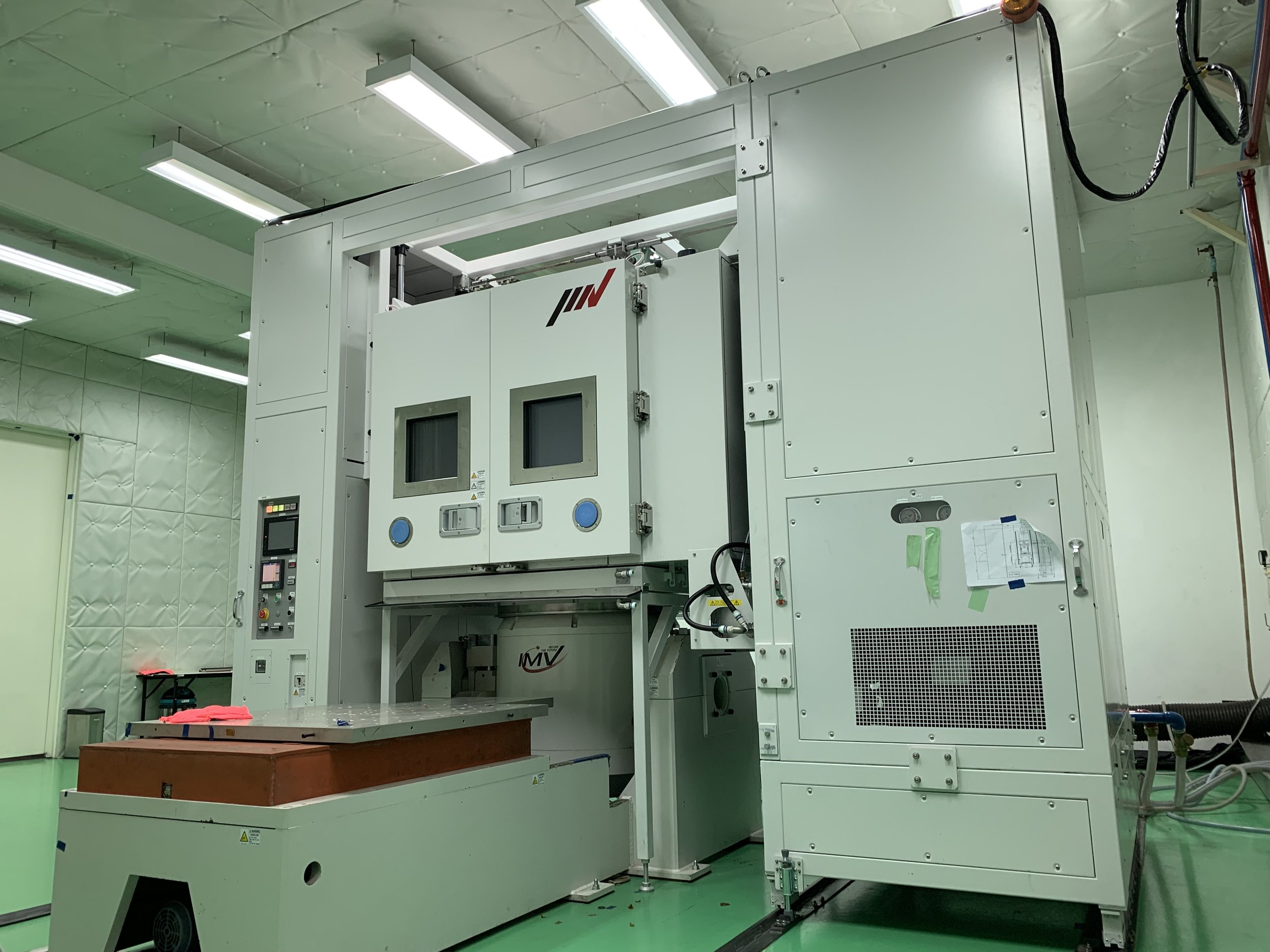

IMV Corporations J-series Electrodynamic Vibration Test Systems provides high velocity and large displacement testing for long throw, low frequency tests along with long duration shock pulses. J-series is a high-functionality system that offers usability and reliability furnished with functions that accommodate high velocity and large displacement testing.
The systems are compatible with IMV’s Intelligent Shaker Management (ISM) amplifiers, ensuring optimum efficiency and performance over the shakers life.
The patented PSG support system significantly improves both durability, reliability of the system resulting in a higher quality of vibration and it’s design provides adequate stiffness and rigidity when compared to a roller support system. This is achieved by an alternative alignment of gears that have a unique curve called an involute curve.
Designed to cope with long duration shock tests the J-Series Shaker featured an expanded maximum test range, including a 2.4m/s maximum velocity of SINE force, a 4.6m/s maximum velocity of Shock force, and a maximum displacement of 100mm.
Feature Summary
K2+ Controller
The K2+ Controller includes further enhancements to control functionality, stability and accuracy - ensuring your tests are always on form.
Random Vibration
Conduct random testing using traditional methods, or go further using Kurtosis control to increase “peakiness”.
Random-on-Random and Sine-on-Random also available.
Classical Shock + More
Classical shock waveform (Half-sine, Haversine, Saw-tooth, Triangle, Trapezoid), Sine beat waveform, Measured waveform… plus options for Long Waveform, SRS, and Megapoint testing
International Safety Standard Compliant
The A-Series amplifiers incorporate a range of safety features, making them compliant for world-wide deployment.

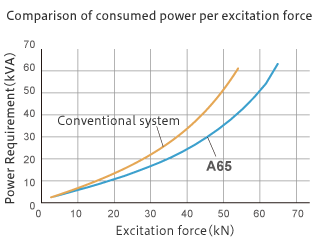

Lower power consumption
In comparison with the same class of conventional systems (i,J-series), the A-series achieves lower power consumption. With an automatic energy-saving function increased energy saving is achieved across all force ranges.
Increased Excitation Force
When compared to previous iterations the A-Series increases force relative to power input, system mass, and system size giving you more force in a more efficient package.
New Power Modules
Next generation power modules deliver best-in-class noise reductions, increased efficiency and higher output power.
Datasheets: IMV J-Series High Displacement Vibration Test Systems
J230/SA3HAG J230/EM3HAG 16kN 100mm Vibration Test System Datasheet
J230S/SA7HAG 16kN Expanded Test Range Shaker System Datasheet
J240/SA4HAG J240/EM4HAG 24kN 100mm Vibration Test System Datasheet
J240S/SA6HAG 16kN Expanded Test Range Shaker System Datasheet
J250/SA5HAG J250/EM5HAG 35kN 100mm Vibration Test System Datasheet
J250/SA6HAG J250/EM6HAG 40kN Expanded Test Range Shaker System Datasheet
J260/SA7HAG J260/EM7HAG 54kN 100mm Vibration Test System Datasheet
J260S/SA16HAG 54kN Expanded Test Range Shaker System Datasheet
Model Summary: Standard Amplifiers
| System Model | J230/SA3AM | J230S/SA7AM | J240/SA4AM | J240S/SA9AM |
|---|---|---|---|---|
| Frequency Range (Hz) | 0-3000 | 0-3000 | 0-2400 | 0-2400 |
| Rated Sine Force (kN) | 16 | 16 | 24 | 24 |
| Rated Random Force (kN rms)*1 | 16 | 16 | 24 | 24 |
| Rated Shock Force (kN) | 40 | 40 | 55 | 70 |
| Max. Acc. Sine(m/s2) | 941 | 888 | 923 | 857 |
| Max. Acc. Random (m/s2 rms) | 658 | 622 | 646 | 600 |
| Max. Acc. Shock (m/s2 peak) | 2352 | 2222 | 2115 | 2500 |
| Max. Vel. Sine (m/s) | 2.4 | 2.4 | 2.4 | 2.4 |
| Max. Vel. Shock (m/s peak) | 2.4 | 3.5 | 2.4 | 3.6 |
| Max. Disp. Sine (mmp-p) | 100 | 100 | 100 | 100 |
| Maximum Travel (mmp-p) | 120 | 120 | 120 | 120 |
| Maximum Load (kg) | 300 | 300 | 400 | 400 |
| Power Requirements (kVA)*2 | 28 | 38 | 38 | 52 |
| Breaker Capacity (A)*3 | 50 | 75 | 75 | 100 |
| Vibration Generator Model | J230 | J230S | J240 | J240S |
| Armature Mass (Kg) | 17 | 18 | 26 | 28 |
| Armature Diameter (mm) | 200 | 200 | 290 | 290 |
| Allowable Eccentric Moment (Nm) | 700 | 700 | 850 | 850 |
| Dimensions (mm) WxHxD | 1124 x 1079 x 850 | 1124 x 1079 x 850 | 1234 x 1145 x 890 | 1234 x 1145 x 890 |
| Shaker Body Diameter (mm) | 630 | 630 | 720 | 720 |
| Mass (kg) | 1800 | 1800 | 2400 | 2400 |
| Power Amplifier Model | SA3M- J30 | SA7M- J30S | SA4M- J40 | SA9M- J40S |
| Maximum Output (kVA) | 23 | 30 | 34 | 40 |
| Dimensions (mm) WxHxD | 580 x 1950 x 850 | 580 x 1950 x 850 | 580 x 1950 x 850 | 1160 x 1950 x 850 |
| Mass (kg) | 330 | 500 | 440 | 1200 |
| Vibration Controller | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 |
| Cooling Method | Air cooling | Air cooling | Air cooling | Air cooling |
| Dimensions (mm) WxHxD*5 | 1045 x 2285 x 711 | 1045 x 2285 x 711 | 931 x 2175 x 538 | 931 x 2175 x 538 |
| Mass (kg) | 150 | 150 | 150 | 150 |
| Wattage (kw) | 3.7 | 3.7 | 5.5 | 5.5 |
| Duct Hose Diameter (mm) | 200 | 200 | 200 | 200 |
| System Model | J250/SA5AM | J250/SA6AM | J260/SA7AM*⁷ | J260S/SA30AM*⁷ |
|---|---|---|---|---|
| Frequency Range (Hz) | 0-2200 | 0-2200 | 0-2600*4 | 0-2000 |
| Rated Sine Force (kN) | 35 | 40 | 54 | 54 |
| Rated Random Force (kN rms)*1 | 35 | 40 | 54 | 54 |
| Rated Shock Force (kN) | 70 | 80 | 108 | 196 |
| Max. Acc. Sine(m/s2) | 777 | 888 | 857 | 857 |
| Max. Acc. Random (m/s2 rms) | 544 | 622 | 600 | 600 |
| Max. Acc. Shock (m/s2 peak) | 1555 | 1777 | 1714 | 2500 |
| Max. Vel. Sine (m/s) | 2.4 | 2.4 | 2.4 | 2.4 |
| Max. Vel. Shock (m/s peak) | 2.4 | 2.4 | 2.4 | 4.6 |
| Max. Disp. Sine (mmp-p) | 100 | 100 | 100 | 100 |
| Maximum Travel (mmp-p) | 120 | 120 | 116 | 116 |
| Maximum Load (kg) | 600 | 600 | 1000 | 1000 |
| Power Requirements (kVA)*2 | 53 | 57 | 86 | 127 |
| Breaker Capacity (A)*3 | 100 | 100 | 150 | 225 |
| Vibration Generator Model | J250 | J250 | J260 | J260S |
| Armature Mass (Kg) | 45 | 45 | 63 | 63 |
| Armature Diameter (mm) | 440 | 440 | 446 | 446 |
| Allowable Eccentric Moment (Nm) | 1550 | 1550 | 1550 | 1550 |
| Dimensions (mm) WxHxD | 1463 x 1301 x 1100 | 1463 x 1301 x 1100 | 1527 x 1319 x 1100 | 1657 x 1319 x 1100 |
| Shaker Body Diameter (mm) | 860 | 860 | 920 | 920 |
| Mass (kg) | 3500 | 3500 | 4100 | 5000 |
| Power Amplifier Model | SA5M- J50 | SA6M- J50 | SA7M- J60 | SA30M- J60S |
| Maximum Output (kVA) | 50 | 57 | 70 | 76 |
| Dimensions (mm) WxHxD | 580 x 1950 x 850 | 580 x 1950 x 850 | 1160 x 1950 x 850 | 2900 x 1950 x 850 |
| Mass (kg) | 880 | 910 | 1400 | 3200 |
| Vibration Controller | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 |
| Cooling Method | Air cooling | Air cooling | Air cooling | Air cooling |
| Dimensions (mm) WxHxD*5 | 1160 x 2405 x 787 | 1160 x 2405 x 787 | 1160 x 2405 x 787 | 1160 x 2405 x 787 |
| Mass (kg) | 250 | 250 | 250 | 250 |
| Wattage (kw) | 11 | 11 | 15 | 15 |
| Duct Hose Diameter (mm) | 250 | 250 | 250 | 250 |
*1 Random force ratings are specified in accordance with ISO5344 conditions. Please contact IMV or your local distributor with specific test requirements.
*2 Power supply: 3-phase 200/220/380/400/415V, 50/60 Hz. A transformer is required for other supply voltages.
*3 In case of 400 V
*4 Maximum velocity 4.6m/s. High velocity restricts maximum Shock force. Please contact IMV or your local distributor with specific test requirements.
*5 Spec described above is in case of 50Hz. Dimension is changed in case of 60Hz.
*6 In case of high velocity option *7 Export License is required for exporting the shaker system of over 50 kN Sine force.
* The specification shows the maximum system performance. For long-duration tests, de-rating by up to 70% must be applied. Continuous use at maximum levels may cause failure.
* In the case of Random vibration test, please set the test definition of the peak value of acceleration waveform to be operated less than the maximum acceleration of Shock.
* Frequency range values vary according to sensor and vibration controller.
* Armature mass and acceleration may change when chamber is combined.
View full specifications here: https://www.imv-global.com/specifications/?lang=en
Model Specification: Eco-Series Amplifiers
| System Model | EM2305A | EM2405A | EM2505A | EM2506A | EM2605A*⁷ |
|---|---|---|---|---|---|
| Frequency Range (Hz) | 0-3000 | 0-2400 | 0-2200 | 0-2200 | 0-2600*4 |
| Rated Sine Force (kN) | 16 | 24 | 35 | 40 | 54 |
| Rated Random Force (kN rms)*1 | 16 | 24 | 35 | 40 | 54 |
| Rated Shock Force (kN) | 40 | 55 | 70 | 80 | 108 |
| High Velocity Shock*6 (kN) | 30 | 48 | 68 | 77 | 96 |
| Max. Acc. Sine(m/s2) | 941 | 923 | 777 | 888 | 857 |
| Max. Acc. Random (m/s2 rms) | 658 | 646 | 544 | 622 | 600 |
| Max. Acc. Shock (m/s2 peak) | 2352 | 2115 | 1555 | 1777 | 1714 |
| Max. Acc. High Velocity Shock*6 (m/s2 peak) | 1764 | 1846 | 1511 | 1711 | 1523 |
| Max. Vel. Sine (m/s) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |
| Max. Vel. Shock (m/s peak) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |
| Max. Vel. High Velocity Shock*6 (m/s peak) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Max. Disp. Sine (mmp-p) | 100 | 100 | 100 | 100 | 100 |
| Max. Disp. High Velocity Shock*6 (mmp-p) | 100 | 100 | 100 | 100 | 100 |
| Maximum Travel (mmp-p) | 120 | 120 | 120 | 120 | 116 |
| Maximum Load (kg) | 300 | 400 | 600 | 600 | 1000 |
| Power Requirements (kVA)*2 | 28 | 38 | 53 | 57 | 86 |
| Breaker Capacity (A)*3 | 50 | 75 | 100 | 100 | 150 |
| Vibration Generator Model | J230 | J240 | J250 | J250 | J260 |
| Armature Mass (Kg) | 17 | 26 | 45 | 45 | 63 |
| Armature Diameter (mm) | 200 | 290 | 440 | 440 | 446 |
| Allowable Eccentric Moment (Nm) | 700 | 850 | 1550 | 1550 | 1550 |
| Dimensions (mm) WxHxD | 1124 x 1079 x 850 | 1234 x 1145 x 890 | 1463 x 1301 x 1100 | 1463 x 1301 x 1100 | 1527 x 1319 x 1100 |
| Shaker Body Diameter (mm) | 630 | 720 | 860 | 860 | 920 |
| Mass (kg) | 1800 | 2400 | 3500 | 3500 | 4100 |
| Power Amplifier Model | SA3M- J30EM | SA4M- J40EM | SA5M- J50EM | SA6M- J50EM | SA7M- J60EM |
| Maximum Output (kVA) | 23 | 34 | 50 | 57 | 70 |
| Dimensions (mm) WxHxD | 580 x 1950 x 850 | 580 x 1950 x 850 | 1160 x 1950 x 850 | 1160 x 1950 x 850 | 1160 x 1950 x 850 |
| Mass (kg) | 380 | 490 | 930 | 960 | 1400 |
| Vibration Controller | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 |
| Cooling Method | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Dimensions (mm) WxHxD*5 | 1044 x 2285 x 704 | 929 x 2175 x 534 | 1160 x 2405 x 787 | 1160 x 2405 x 787 | 1160 x 2405 x 787 |
| Mass (kg) | 150 | 150 | 250 | 250 | 250 |
| Wattage (kw) | 4 | 4 | 11 | 11 | 15 |
| Duct Hose Diameter (mm) | 200 | 200 | 250 | 250 | 250 |
View full specifications here: https://www.imv-global.com/specifications/?lang=en
