Water Cooled Vibration Test Systems (IMV K-Series)
The K-series provides maximum performance in a range of sizes from 30kN all the way to 350kN providing high performance and load support for large and complex assemblies. Being water cooled these shakers are quiet, with the fan noise associated with shake-table testing all but eliminated.
For the automotive market Lithium ion battery packs, EV drive trains, and complete assemblies are testable. For aerospace entire satellites can be tested, or large sections of rockets and propulsion systems, including propeller and motor combinations.

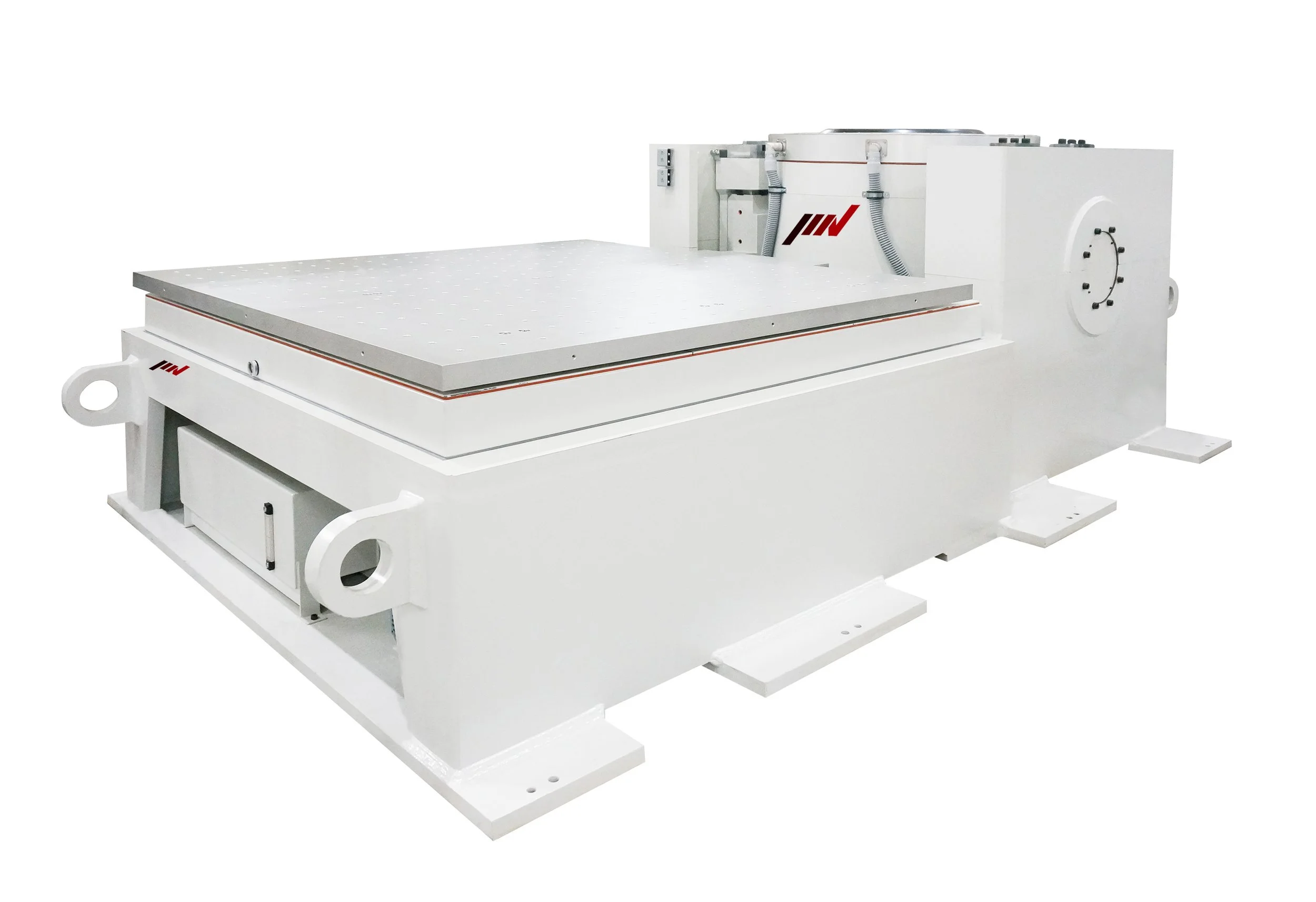

The K-series can be configured with huge head expanders and slip tables, and can be customised to suit your testing needs. Suitable also for complete network racks, defence applications, large appliances and heavy assembly testing. The armature is supported by IMV’s Parallel Support Guide System (PSG).
The PSG significantly improves both durability, reliability of the system resulting in a higher quality of vibration and it’s design provides adequate stiffness and rigidity when compared to a roller support system. This is achieved by an alternative alignment of gears that have a unique curve called an involute curve.
Feature Summary
K2+ Controller
The K2+ Controller includes further enhancements to control functionality, stability and accuracy - ensuring your tests are always on form.
Random Vibration
Conduct random testing using traditional methods, or go further using Kurtosis control to increase “peakiness”. Random-on-Random and Sine-on-Random also available.
Sine Vibration
Everything you expect in a vibration controller and more - sine sweeps, dwells, single points, amplitude dwell, resonance search and more.
Classical Shock + More
Classical shock waveform (Half-sine, Haversine, Saw-tooth, Triangle, Trapezoid), Sine beat waveform, Measured waveforms
Sine Burst + Beat
Commonly required in aerospace testing these waveforms are optionally supported with software licensing.
International Safety Standard Compliant
The A-Series amplifiers incorporate a range of safety features, making them compliant for world-wide deployment.
Lower power consumption
In comparison with the same class of conventional systems (i,J-series), the A-series achieves lower power consumption. With an automatic energy-saving function increased energy saving is achieved across all force ranges.
Increased Excitation Force
When compared to previous iterations the A-Series increases force relative to power input, system mass, and system size giving you more force in a more efficient package.
New Power Modules
Next generation power modules deliver best-in-class noise reductions, increased efficiency and higher output power.
Datasheets: IMV K-Series Vibration Test Systems
K30/SA4HAG 30kN Water Cooled Shaker Specification
K60/SA8HAG 62kN Water Cooled Shaker Specification
K80/SA10HAG 80kN Water Cooled Shaker Specification
K100/SA14HAG 100kN Water Cooled Specification (51mm)
K100LS/SA16HAG 100kN Water Cooled Specification (100mm)
K125/SA18HAG 125kN Water Cooled Specification (51mm)
K125LS/SA20HAG 125kN Water Cooled Specification (100mm)
K160/SA20HAG 160kN Water Cooled Specification (76.2mm)
K200/SA24HAG 200kN Water Cooled Specification (76.2mm)

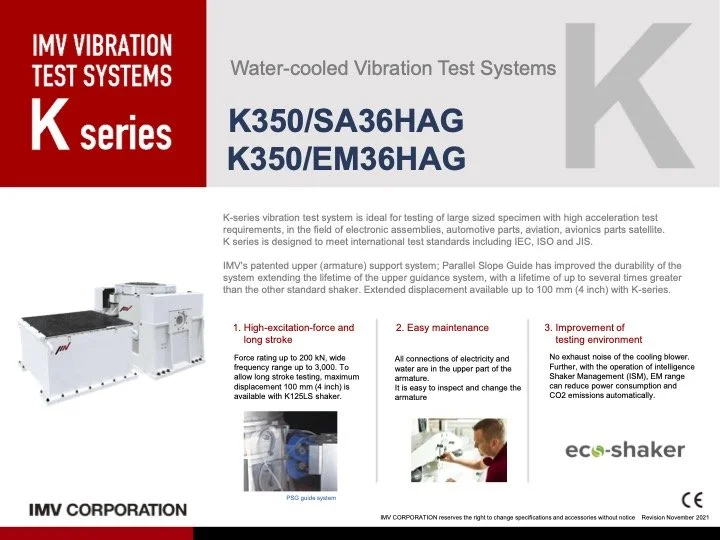

K350/SA36HAG 350kN Water Cooled Specification (76.2mm)
Model Summary: Standard Amplifiers
| System Model | K030/SA4AM | K062/SA8AM*⁶ | K080/SA10HAM*⁶ | K100/SA14HAM*⁶ | K125/SA18HAM*⁶ |
|---|---|---|---|---|---|
| Frequency Range (Hz) | 0-3000 | 0-2500 | 0-2500 | 0-2500 | 0-2500 |
| Rated Sine Force (kN) | 30.8 | 61.7 | 80 | 100 | 125 |
| Rated Random Force (kN rms)*1 | 21.5 | 61.7 | 80 | 100 | 125 |
| Rated Shock Force (kN) | 61.6 | 123.4 | 160 | 200 | 250 |
| Max. Acc. Sine(m/s2) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Max. Acc. Random (m/s2 rms) | 557 | 700 | 700 | 700 | 700 |
| Max. Acc. Shock (m/s2 peak) | 2000 | 2000 | 2000 | 2000 | 2000 |
| Max. Vel. Sine (m/s) | 1.8 | 2 | 2 | 2 | 2 |
| Max. Vel. Shock (m/s peak) | 1.8 | 2 | 2 | 2 | 2 |
| Max. Disp. Sine (mmp-p) | 51 | 51 | 51 | 51 | 51 |
| Maximum Travel (mmp-p) | 58 | 60 | 59 | 62 | 62 |
| Maximum Load (kg) | 500 | 1000 | 1000 | 2000 | 2000 |
| Power Requirements (kVA) *2 | 49 | 87 | 100 | 150 | 170 |
| Breaker Capacity (A) *4 | 100 | 150 | 175 | 300 | 300 |
| Vibration Generator Model | K030 | K060 | K080 | K125 | K125 |
| Armature Mass (Kg) | 27 | 40 | 60 | 80 | 80 |
| Armature Diameter (mm) | 320 | 400 | 446 | 560 | 560 |
| Allowable Eccentric Moment (Nm) | 980 | 980 | 1550 | 2450 | 2450 |
| Dimensions (mm) WxHxD | 1100x1090x824 | 1380x1085x1000 | 1595x1200x1050 | 1776x1373x1300 | 1776x1373x1300 |
| Shaker Body Diameter (mm) | 760 | 900 | 1000 | 1100 | 1100 |
| Mass (kg) | 3000 | 3700 | 5000 | 7000 | 7000 |
| Model | SA4AM- K30 | SA8AM- K60 | SA10HAM- K80 | SA14HAM- K125 | SA18HAM- K125 |
| Maximum Output (kVA) | 33 | 60 | 100 | 98 | 124 |
| Dimensions (mm) WxHxD | 580x1950x850 | 1160x1950x850 | 1160x1950x850 | 1740x1950x850 | 1740x1950x850 |
| Mass (kg) | 950 | 1350 | 1500 | 2500 | 2600 |
| Vibration Controller | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 |
| Cooling Method | Shaker:Water Amplifier:Air | Shaker:Water Amplifier:Air | Shaker:Water Amplifier:Air | Shaker:Water Amplifier:Air | Shaker:Water Amplifier:Air |
| Primary Cooling Water Supply(L/min) | 195 | 260 | 390 | 390 | 390 |
| Dimensions(mm) WxHxD | 580x1700x850 | 580x1700x850 | 580x1700x850 | 580x1700x850 | 580x1700x850 |
| Mass(kg) | 400 | 400 | 400 | 400 | 400 |
| System Model | K100LS/SA16HAM*⁶ | K125LS/SA20HAM*⁶ | K160/SA20HAM*⁶ | K200/SA24HAM*⁶ | K350/SA36HAM*⁶ |
|---|---|---|---|---|---|
| Frequency Range (Hz) | 0-2000 | 0-2000 | 0-2000 | 0-2000 | 0-2000 |
| Rated Sine Force (kN) | 100 | 125 | 160 | 200 | 350 |
| Rated Random Force (kN rms)*1 | 100 | 125 | 160 | 200 | 315 |
| Rated Shock Force (kN) | 200 | 250 | 320 | 400 | 700 |
| Max. Acc. Sine(m/s2) | 1000 | 1000 | 800 | 1000 | 1000 |
| Max. Acc. Random (m/s2 rms) | 700 | 700 | 560 | 700 | 700 |
| Max. Acc. Shock (m/s2 peak) | 2000 | 2000 | 1600 | 2000 | 2000 |
| Max. Vel. Sine (m/s) | 2 | 2 | 2 | 2 | 2 |
| Max. Vel. Shock (m/s peak) | 2 | 2 | 2.4 | 2.4 | 3.5 |
| Max. Disp. Sine (mmp-p) | 100 | 100 | 76.2 | 76.2 | 76.2 |
| Maximum Travel (mmp-p) | 132 | 132 | 86 | 86 | 94 |
| Maximum Load (kg) | 2000 | 2000 | 2000 | 2000 | 3000 |
| Power Requirements (kVA) *2 | 170 | 190 | 270 | 300 | 325 |
| Breaker Capacity (A) *4 | 300 | 350 | 500 | 600 | 400/200 |
| Vibration Generator Model | K125LS | K125LS | K200 | K200 | K350 |
| Armature Mass (Kg) | 100 | 100 | 200 | 200 | 350 |
| Armature Diameter (mm) | 560 | 560 | 650 | 650 | 760 |
| Allowable Eccentric Moment (Nm) | 2450 | 2450 | 4900 | 4900 | 4900 |
| Dimensions (mm) WxHxD | 1990x1546x1370 | 1990x1546x1370 | 2465x1908x1740 | 2465x1908x1740 | 3020x2306x2080 |
| Shaker Body Diameter (mm) | 1100 | 1100 | 1260 | 1260 | 1630 |
| Mass (kg) | 8000 | 8000 | 16000 | 16000 | 37000 |
| Model | SA16HAM- K125LS | SA20HAM- K125LS | SA20HAM- K200 | SA24HAM- K200 | SA36HAM- K350 |
| Maximum Output (kVA) | 124 | 155 | 256 | 320 | 400 |
| Dimensions (mm) WxHxD | 1740x1950x850 | 1740x1950x850 | 2900x1950x850 | 2900x1950x850 | 4060x1950x850 |
| Mass (kg) | 2600 | 3300 | 4850 | 5000 | 6200 |
| Vibration Controller | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 |
| Cooling Method | Shaker:Water Amplifier:Air | Shaker:Water Amplifier:Air | Shaker:Water Amplifier:Air | Shaker:Water Amplifier:Air | Shaker:Water Amplifier:Air |
| Primary Cooling Water Supply(L/min) | 390 | 390 | 650*5 | 650*5 | 590 |
| Dimensions(mm) WxHxD | 580x1700x850 | 580x1700x850 | 1050x1900x850 | 1050x1900x850 | 1200x1950x1400 |
| Mass(kg) | 400 | 400 | 600 | 600 | 950 |
*1 Random force ratings are specified in accordance with ISO5344 conditions. Please contact IMV or your local distributor with specific test requirements.
*2 Power supply: 3-phase 380/400/415/440 V, 50/60 Hz. A transformer is required for other supply voltages.
*3 If the tests (Sweep or Spot) include high velocity, the maximum velocity value should be reduced to 1.4 m/s.
*4 In case of 400 V
*5 Bypass circuit is needed. Please contact IMV or your local distributor for further information.
*6 Export Lisence is required for exporting the shaker system of over 50 kN Sine force.
* The specification shows the maximum system performance. For long-duration tests, de-rating by up to 70 % must be applied. Continuous use at maximum levels may cause failure.
* In the case of Random vibration test, please set the test definition of the peak value of acceleration waveform to be operated less than the maximum acceleration of Shock.
* Frequency range values vary according to sensor and vibration controller.
* Armature mass and acceleration may change when chamber is combined.
View full specifications here: https://www.imv-global.com/specifications/?lang=en
Model Specification: Eco-Series Amplifiers
| System Model | EMK0301A | EMK0622A*⁶ | EMK0801A*⁶ | EMK1251A*⁶ | EMK1252A*⁶ |
|---|---|---|---|---|---|
| Frequency Range (Hz) | 0-3000 | 0-2500 | 0-2500 | 0-2500 | 0-2500 |
| Rated Sine Force (kN) | 30.8 | 61.7 | 80 | 100 | 125 |
| Rated Random Force (kN rms)*1 | 21.5 | 61.7 | 80 | 100 | 125 |
| Rated Shock Force (kN) | 61.6 | 123.4 | 160 | 200 | 250 |
| Max. Acc. Sine(m/s2) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Max. Acc. Random (m/s2 rms) | 557 | 700 | 700 | 700 | 700 |
| Max. Acc. Shock (m/s2 peak) | 2000 | 2000 | 2000 | 2000 | 2000 |
| Max. Vel. Sine (m/s) | 1.8 | 2 | 2 | 2 | 2 |
| Max. Vel. Shock (m/s peak) | 1.8 | 2 | 2 | 2 | 2 |
| Max. Disp. Sine (mmp-p) | 51 | 51 | 51 | 51 | 51 |
| Maximum Travel (mmp-p) | 58 | 60 | 59 | 62 | 62 |
| Maximum Load (kg) | 500 | 1000 | 1000 | 2000 | 2000 |
| Power Requirements (kVA) *2 | 49 | 87 | 100 | 150 | 170 |
| Breaker Capacity (A) *4 | 100 | 175 | 175 | 300 | 350 |
| Vibration Generator Model | K030 | K060 | K080 | K125 | K125 |
| Armature Mass (Kg) | 27 | 40 | 60 | 80 | 80 |
| Armature Diameter (mm) | 320 | 400 | 446 | 560 | 560 |
| Allowable Eccentric Moment (Nm) | 980 | 980 | 1550 | 2450 | 2450 |
| Dimensions (mm) WxHxD | 1100x1090x824 | 1380x1085x1000 | 1595x1200x1050 | 1776x1373x1300 | 1776x1373x1300 |
| Shaker Body Diameter (mm) | 760 | 900 | 1000 | 1100 | 1100 |
| Mass (kg) | 3000 | 3700 | 5000 | 7000 | 7000 |
| Model | EM4AM- K30 | EM8AM- K60 | EM10HAM- K80 | EM14HAM- K125 | EM18HAM- K125 |
| Maximum Output (kVA) | 33 | 60 | 100 | 98 | 124 |
| Dimensions (mm) WxHxD | 580x1950x850 | 1160x1950x850 | 1160x1950x850 | 1740x1950x850 | 1740x1950x850 |
| Mass (kg) | 1300 | 1400 | 1550 | 2550 | 2600 |
| Vibration Controller | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 |
| Cooling Method | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling |
| Primary Cooling Water Supply(L/min) | 195 | 260 | 390 | 390 | 390 |
| Dimensions(mm) WxHxD | 580x1700x850 | 580x1700x850 | 580x1700x850 | 580x1700x850 | 580x1700x850 |
| Mass(kg) | 400 | 400 | 400 | 400 | 400 |
| System Model | EMK1252A*⁶ | EMK1255A*⁶ | EMK1256A*⁶ | EMK2001A*⁶ | EMK2002A*⁶ | EMK3501A*⁶ |
|---|---|---|---|---|---|---|
| Frequency Range (Hz) | 0-2500 | 0-2000 | 0-2000 | 0-2000 | 0-2000 | 0-2000 |
| Rated Sine Force (kN) | 125 | 100 | 125 | 160 | 200 | 350 |
| Rated Random Force (kN rms)*1 | 125 | 100 | 125 | 160 | 200 | 315 |
| Rated Shock Force (kN) | 250 | 200 | 250 | 320 | 400 | 700 |
| Max. Acc. Sine(m/s2) | 1000 | 1000 | 1000 | 800 | 1000 | 1000 |
| Max. Acc. Random (m/s2 rms) | 700 | 700 | 700 | 560 | 700 | 700 |
| Max. Acc. Shock (m/s2 peak) | 2000 | 2000 | 2000 | 1600 | 2000 | 2000 |
| Max. Vel. Sine (m/s) | 2 | 2 | 2 | 2 | 2 | 2 |
| Max. Vel. Shock (m/s peak) | 2 | 2 | 2 | 2.4 | 2.4 | 3.5 |
| Max. Disp. Sine (mmp-p) | 51 | 100 | 100 | 76.2 | 76.2 | 76.2 |
| Maximum Travel (mmp-p) | 62 | 132 | 132 | 86 | 86 | 94 |
| Maximum Load (kg) | 2000 | 2000 | 2000 | 2000 | 2000 | 3000 |
| Power Requirements (kVA) *2 | 170 | 170 | 190 | 270 | 300 | 420 |
| Breaker Capacity (A) *4 | 350 | 300 | 350 | 500 | 600 | 400/200 |
| Vibration Generator Model | K125 | K125LS | K125LS | K200 | K200 | K350 |
| Armature Mass (Kg) | 80 | 100 | 100 | 200 | 200 | 350 |
| Armature Diameter (mm) | 560 | 560 | 560 | 650 | 650 | 760 |
| Allowable Eccentric Moment (Nm) | 2450 | 2450 | 2450 | 4900 | 4900 | 1900 |
| Dimensions (mm) WxHxD | 1776x1373x1300 | 1990x1546x1370 | 1990x1546x1370 | 2465x1908x1740 | 2465x1908x1740 | 3020x2306x2080 |
| Shaker Body Diameter (mm) | 1100 | 1100 | 1100 | 1260 | 1260 | 1630 |
| Mass (kg) | 7000 | 8000 | 8000 | 16000 | 16000 | 37000 |
| Model | EM18HAM- K125 | EM16HAM- K125LS | EM20HAM- K125LS | EM20HAM- K200 | EM24HAM- K200 | EM36HAM- K350 |
| Maximum Output (kVA) | 124 | 124 | 155 | 256 | 320 | 400 |
| Dimensions (mm) WxHxD | 1740x1950x850 | 1740x1950x850 | 1740x1950x850 | 2900x1950x850 | 2900x1950x850 | 4060x1950x850 |
| Mass (kg) | 2600 | 2650 | 3350 | 4850 | 5000 | 6200 |
| Vibration Controller | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 | See Vibration Controller K2 |
| Cooling Method | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling | Shaker:Water Cooling/Amp:Air Cooling |
| Primary Cooling Water Supply(L/min) | 390 | 390 | 390 | 650*5 | 650*5 | 590 |
| Dimensions(mm) WxHxD | 580x1700x850 | 580x1700x850 | 580x1700x850 | 1050x1900x850 | 1050x1900x850 | 1200x1950x1400 |
| Mass(kg) | 400 | 400 | 400 | 600 | 600 | 950 |
*1 Random force ratings are specified in accordance with ISO5344 conditions. Please contact IMV or your local distributor with specific test requirements.
*2 Power supply: 3-phase 380/400/415/440 V, 50/60 Hz. A transformer is required for other supply voltages.
*3 If the tests (Sweep or Spot) include high velocity, the maximum velocity value should be reduced to 1.4 m/s.
*4 In case of 400 V
*5 Bypass circuit is needed. Please contact IMV or your local distributor for further information.
*6 Export Lisence is required for exporting the shaker system of over 50 kN Sine force.
* The specification shows the maximum system performance. For long-duration tests, de-rating by up to 70 % must be applied. Continuous use at maximum levels may cause failure.
* In the case of Random vibration test, please set the test definition of the peak value of acceleration waveform to be operated less than the maximum acceleration of Shock.
* Frequency range values vary according to sensor and vibration controller.
* Armature mass and acceleration may change when chamber is combined.
View full specifications here: https://www.imv-global.com/specifications/?lang=en
